Lithium Inverter Battery Price

Lithium inverter technology has been widely adopted within the solar inverter industry. For consumers to make decisions regarding the expense involved with lithium inverter batteries understanding these costs has shifted from an option, to an essential aspect of informed purchasing habits. This article aims to clarify the cost factors associated with lithium inverter batteries across uses relying solely on credible research sources focused on non-commercial energy consumption.

During the phase of assessment headline prices usually capture most consumers attention. However the cost of lithium inverter batteries is eventually shaped by fundamental factors tied to technology and economic aspects which have a significant and enduring effect, on the price of solar inverters.

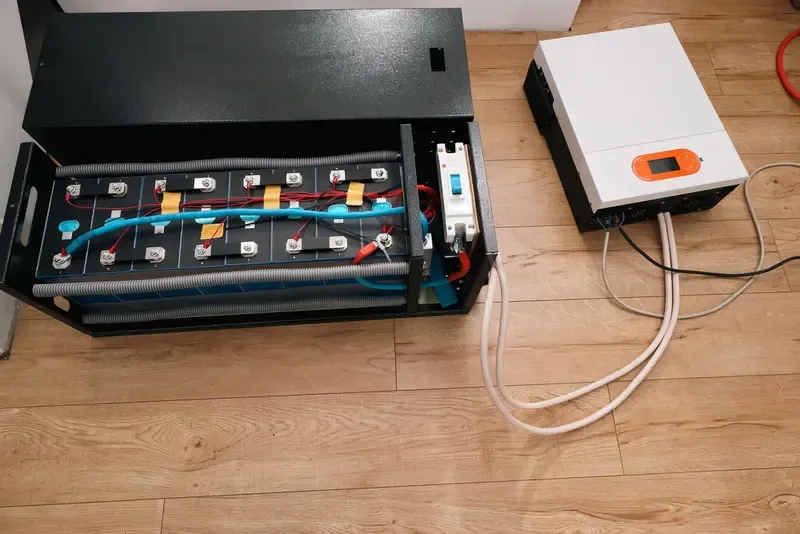

What Composes a Lithium Inverter Battery

A lithium inverter battery is more than a battery. It functions as an energy storage system specifically made to work with an inverter aiding in the transformation of stored current into usable current. Within a solar inverter system this battery proves to be highly effective for storing solar energy to be utilized during periods, without sunlight.

Regarding pricing frameworks the expense of lithium batteries within technology involves more than merely the price of materials. It includes elements. Per cost models developed by the National Renewable Energy Laboratory, balance of system components play a role in overall storage expenses beyond simply the cells.

Important Parameters Affecting Lithium Inverter Battery Price

Battery Materials and Energy Density

Lithium batteries used in inverters mainly rely on lithium-ion chemistries tailored for energy storage applications. Increased energy density allows for capacities within a compact design, which can reduce installation expenses despite possibly higher cell costs. According to NREL models the predicted system lifetime cost, per kilowatt hour varies depending on the chosen chemistries.

System Size and Capacity

Costs of lithium battery inverters increase with capacity. Smaller consumer units usually come with price, per unit compared to larger ones. Utility-scale batteries data sourced from the National Renewable Energy Laboratory Utility Scale Battery Storage Annual Technology Baseline demonstrates the cost advantages of scale that reduce the expense, per unit of system capacity and this concept similarly applies to solar inverter setups in theory.

Integration With a Solar Inverter

The lithium inverter battery needs voltages, communication and control when used with the solar inverter. Some systems are built for integration, which may involve higher upfront expenses but help avoid efficiency drops. This upfront cost is a factor, in the battery price and is often overlooked by purchasers when evaluating battery prices.

Installation and Balance of System Costs

The cost of the lithium battery for the inverter frequently excludes installation fees. In this context installation, wiring, safety disconnects and control equipment add to the expenses of the complete system. Based on NREL cost analyses expenses apart, from the battery continue to represent a portion of the total cost even as battery cell prices decline.

Typical Lithium Inverter Battery Price Ranges

According to -commercial modeling performed by NREL, lithium-based storage options exhibit a wide range of costs. While precise consumer pricing cannot be established research-based benchmarks may be used for comparison purposes.

System Type	Typical Capacity	Cost Drivers	Relative Price Level
Residential solar inverter storage	5 to 15 kWh	Installation labor system integration	High per kWh
Commercial solar inverter storage	30 to 200 kWh	Engineering design controls	Medium
Large scale inverter storage	1 MWh and above	Economies of scale	Lower per kWh

The ranges mentioned here do not represent prices; instead they are derived from cost structure models created by national energy analysts.

Price Over Time for Lithium Inverter Battery

A major benefit of utilizing lithium batteries is the decrease in expenses over time. The chart created by the NREL predicts that the price of lithium-ion batteries for storage will keep dropping as manufacturers scale up. This will have an impact on the price of batteries, in solar inverters.

The U.S. Department of Energy Office of Scientific and Technical Information Cost Projections for Utility Scale Battery Storage advances peer-reviewed modeling that verifies cost reductions can persist throughout this decade. These sectors while currently cheaper, than system prices are influenced by this trend of decreasing costs.

Comparing Lithium Inverter Batteries to Alternatives

Lithium vs Lead Acid Battery

While the upfront expense of acid systems appears more affordable lithium inverter battery prices generally provide superior cost-effectiveness. Longer cycle lifespan, increased depth of discharge and enhanced efficiency reduce the need for replacements. Considering the life cycle cost, per usable kilowatt hour lithium model inverter battery prices can prove to be more economical.

Lithium Batteries vs. Hybrid Battery Systems

A mix of batteries and an alternative storage method can address peak demand. Will be more complex. Lithium Inverter Batteries are favored in solar inverter setups due, to performance, simpler integration and established safety standards.

Impact of Solar Inverter on Battery Prices

The solar inverter directly affects the price of lithium inverter batteries. A efficient inverter extends the batteries lifespan. Although the upfront expenses are considerable the efficiency of the inverter and its control algorithms reduce costs by minimizing energy losses and enhancing durability.

Relying on laboratory standards enables purchasers to spot unrealistic price assertions and steer clear of low-cost systems that underperform and do not provide lasting value.

Future Outlook for Lithium Inverter Battery Pricing

Energy analysts anticipate reductions in lithium inverter battery prices as production techniques advance. Nonetheless costs related to balance of system components and installation will play a role, in determining overall expenses. Customers aware of this trend will be able to make knowledgeable choices when investing in solar inverter solutions.

Final Thoughts on Lithium Inverter Battery Price

Lithium inverter battery price reflects a combination of technology, integration, and long term performance rather than just battery cells. By grounding decisions in authoritative energy research and focusing on total system value, buyers can select lithium inverter solutions that align with both budget and energy goals. If you are interested in lithium inverter systems for solar applications, you can check our related solar inverter selection guides.

Lithium Inverter Battery Price最先出现在hybrid solar products | HJ-The latest home energy storage equipment。

What is a pure sine wave inverter?

info@hj-net.com — Tue, 09 Dec 2025 02:41:17 +0000

Get A Quote Now!

Hybrid Solar Inverter 8000w for Home

Solar Pure Sine Wave Inverters 4200W

Hybrid Solar Inverter 3000w for Home

Pure Sine Wave Inverters 2000w

Solar Water Pump Inverter

What is a pure sine wave inverter?

A pure sine wave inverter is that which converts direct current into smooth, alternating current similar to high-quality electricity supplied by utility grids. The clean waveform delivered is important for sensitive electronics and forms the heart of every solar or hybrid solar inverter system. Inside the first section you will learn exactly how it produces stable power and why it is widely used across modern energy systems.

How a pure sine wave inverter works in solar applications

A pure sine wave inverter creates an AC output that is in a smooth curve, rather than a stepped or distorted pattern. This shape avoids electrical stress, noise, and excessive heat that may arise from lower-quality waveforms. Solar systems depend on waveform stability because sunlight varies through the day and DC production can fluctuate without control electronics.

Conversion stages inside the inverter

The inverter receives direct current from the batteries or solar charge controllers. It boosts the voltage with internal switching circuits and forms the final alternating output through control algorithms and pulse width modulation. All these processes keep waveform accuracy high and distortion low, even at changing load conditions.

Why precise waveforms matter

Appliances with motors, compressors, or microprocessors depend on stable and predictable current. A clean sine wave output prevents flicker, vibration, and premature wear. Devices such as televisions, medical tools, laptops, and variable speed motors perform far better under a pure sine wave than under a stepped waveform.

Role of pure sine wave inverters in solar inverter and hybrid solar inverter systems

In grid connected solar systems the inverter has to satisfy rigorous performance and reliability requirements. A report from Sandia National Laboratories hosted by the United States Department of Energy underlines that “grid tied photovoltaic inverters need to provide reliable output to preserve network stability and minimize disruptions” (Sandia National Laboratories Utility scale grid tied PV inverter reliability workshop summary report). These grid requirements make pure sine wave output necessary any time solar equipment interfaces with public networks.

The hybrid solar inverter systems work with a mix of solar power and batteries, sometimes generator input. They change modes according to weather or demand. Therefore, because transitions occur quite often, waveform consistency is also important. Pure sine wave inverter systems allow smooth changes in source, with no malfunctioning of appliances or voltage instability.

Compliance and power quality in practical networks

A study published in the Energy Systems journal by Springer shows that waveform quality strongly influences voltage stability and compliance in microinverter grid-connected solar systems. The research has found that purity of waveform maintains reliable performance across low voltage networks. This fact corroborates that pure sine wave inverters play a significant role in every kind of distributed generation.

Advantages of pure sine wave inverters

Pure sine wave inverters have numerous clear-cut advantages, making them the perfect choice for every modern solar installation.

Reliable performance for sensitive electronics

Clean output helps microprocessor-based devices operate smoothly. Computers, precision instruments, and medical electronics work more safely under a pure sine wave supply.

Higher efficiency

Motors and compressors start more easily and avoid unnecessary energy loss. This improves the long-term efficiency of the system, especially in air conditioners, pumps, and power tools.

Improved audio and video quality

Fewer artifacts and less electrical noise are evident in sound systems and projectors powered by a pure sine wave, which improves clarity in professional environments.

Reduced electrical stress

Smoother voltage and current transitions reduce mechanical and thermal stress on motors and transformers, thus prolonging the life of such equipment.

Broad compatibility

A pure sine wave inverter can run any appliance designed for grid power without exception. This universal compatibility eliminates guesswork when expanding a solar system.

Pure sine wave inverter versus modified sine wave inverter

The table below shows the main differences between two common inverter types.

Feature	Pure sine wave inverter	Modified sine wave inverter
Output waveform	Smooth sine waveform	Stepped waveform
Sensitive electronics	Performs best	May cause noise or heat issues
Efficiency	Higher	Moderate
Cost	Higher	Lower
Appliance compatibility	Compatible with all devices	Not suitable for precision devices

cases

In 2023 a homeowner in Nevada upgraded an off-grid cabin system with the replacement of an older modified waveform inverter with a new pure sine wave model. After the upgrade, the refrigerator ran more quietly, and the home theater system did not exhibit any further audio interference. A small medical device also ran with greater stability when the batteries took over during nighttime operation.

In 2022, a woodworking studio located in rural Victoria upgraded its hybrid solar setup. The power tools with induction motors started more smoothly once switched to a pure sine wave inverter. The improved waveform reduced motor temperature during extended use, lowering the maintenance cost and increasing tool reliability for daily production.

How to choose a pure sine wave inverter

Sizing a pure sine wave inverter starts with identifying the essential loads and estimating peak demand. Most appliances with motors require strong surge capacity when starting up. Slightly oversizing ensures dependable operation.

Determine next whether your system connects to the utility grid. Any configuration that sends energy to the grid must maintain strict waveform standards, which reinforces the value of pure sine wave technology. Hybrid systems deserve extra attention because they blend battery and solar input frequently.

Ensure the inverter uses safety protections such as temperature monitoring and overload management, including an auto-shutoff in case of malfunction. High-quality models continue to produce consistent waveform accuracy even during sudden load changes.

Final thoughts

A pure sine wave inverter is a key component for anyone operating solar inverter or hybrid solar inverter systems. Its stable waveform protects sensitive appliances, enhances efficiency, and supports compliance with real-world power quality requirements, as demonstrated in both national laboratory research and academic studies. If you want to build or upgrade your solar system, then you can check our other guides for practical support.

What is a pure sine wave inverter?最先出现在hybrid solar products | HJ-The latest home energy storage equipment。

How to Connect a Portable Solar Panel to an RV Battery

info@hj-net.com — Tue, 02 Dec 2025 02:12:52 +0000

Get A Quote Now!

Industrial pure sine wave inverter 1KW-6KW

Solar Pump Inverter

Hybrid Solar Inverter 3000w for Home

Hybrid Solar Inverter 8000w for Home

Solar Pure Sine Wave Inverters 4200W

How to Connect a Portable Solar Panel to an RV Battery

Harnessing the power of solar panels on an RV has become one of the easiest ways to keep batteries charged in an off-grid manner. It is quite simple once you learn how a portable solar panel works, how the charge controller protects your battery, and what steps keep the system safe. This guide shows precisely how to connect a portable solar panel to an RV battery in an easy, user-friendly manner.

According to NREL: A Consumer’s Guide to Solar Electricity, photovoltaic systems work best when panels receive direct sunlight and use well-matched wiring and controls, that principle is the foundation for a reliable RV setup.

What You Need Before Connecting a Solar Panel to an RV Battery

It helps to know, before anything in the way of wiring is done, exactly how this basic flow of energy works: the portable solar panel gathers sunlight, the charge controller regulates the current, and the battery stores it. This simple sequence protects the battery from overcharging and improves long-term performance.

Understanding How RV Solar Charging Works

A portable solar panel produces direct current. That electricity varies with sun angle and needs regulation before reaching the battery. Regulation of this electricity is the job of the solar charge controller. It prevents voltage spikes and limits current so that the battery receives a clean charge. Without a controller, the battery would slowly degrade.

Components You Need to Have Before Installation

To get started, you need the following items.

Portable solar panel
Charge controller
MC4 connectors or compatible plugs
Extension cables
Fused battery leads
Multimeter
Deep cycle RV battery or bank

This small collection provides you with everything needed for a safe system. Having these pieces organized reduces the likelihood of wiring errors.

How to Connect a Portable Solar Panel to RV Batteries: A Step-by-Step Guide

Every RV setup is slightly different, and these steps follow the most common wiring layout, matching manufacturer instructions for well-known off-grid systems.

Step 1: Position the Portable Solar Panel Properly

Place the portable solar panel in an open and sunny area. Keep it close to the RV, but far enough away so that the roof’s shadow does not fall on it. Generally speaking, a tilt that roughly matches the local latitude improves energy capture. If you find that the shadows are moving during the day, reposition it for consistent exposure.

Step 2: Connect the Solar Charge Controller

Place the controller where it stays dry and is easy to access. Most controllers label ports for panel and battery. Start with connecting the panel leads to the controller. The polarity markings help avoid reversed wiring. A reversed connection will prevent charging but will not damage the panel if you catch the mistake early.

In 2021, a couple traveling across Arizona used a 100 watt portable solar panel with a small charge controller inside their RV pantry cabinet. They chose this location because it remained cool and allowed them to see the indicator lights every evening. That simple placement helped them catch a loose connector early in their trip, and their battery remained healthy for months.

Step 3: Attach the Controller to the RV Battery Safely

Connect the controller to the battery using fused leads. Positive first, negative second. A fuse reduces the chance of a short circuit in case the cables are pinched or damaged. From U.S. DOE: Energy Storage Safety Strategic Plan, proper circuit protection is amongst the simplest ways to reduce failure in small energy systems.

Then, make sure the controller recognizes the type of battery. Some controllers will use lithium, AGM, or flooded lead acid settings. Selecting an improper type can lead to a reduction in charging efficiency.

Step 4: Monitor Voltage and Charging Efficiency

With the system running, voltage can be checked with a multimeter. A resting lead-acid battery often reads close to twelve point six volts, though lithium batteries show much higher resting values. The controller screen can be watched to verify charging flow. Most controllers will show panel voltage, current, and state of charge. A few minutes of observation helps you confirm that sunlight is reaching the panel, and energy is flowing correctly.

How to Choose the Right Portable Solar Panel for Your RV

Picking the right size and type of panel defines how often you need to move it and how fast your battery will charge. The portable solar panel is lighter compared to the fixed roof panels; it works particularly well for boondocking or campgrounds with trees.

Fixed Solar Panel and Portable Solar Panel Differences

A fixed panel remains on the roof and usually makes more total energy, as you never forget to deploy it. A portable solar panel gives flexible ground placement with better angles. If you camp under trees, a portable option usually performs better because you can chase the sun in open spaces.

How Much Wattage You Actually Need for an RV

A small RV with LED lighting and minimal appliance use often uses one hundred to two hundred watts for stable charging. Larger RVs that make use of inverters or that have multiple batteries may need three hundred watts or more. What size you need depends on your daily consumption. If you regularly drain the battery below fifty percent, consider adding more panel capacity.

This simple comparison may help you.

Panel Type	Typical Wattage	Portability	Best Use Case
Portable solar panel	80 to 200 W	Easy to move	Shaded campsites or flexible placement
Fixed roof panel	100 to 400 W	Permanent	Long stays or frequent high loads

Common Mistakes When Hooking a Portable Solar Panel to an RV Battery

Understanding mistakes will help avoid slow charging, weak battery life, or early failure of the equipment.

Mistake 1: Hooking Up Directly Without a Controller

Never connect the solar panel to the battery directly. It may appear to charge for some time, but unregulated current slowly harms the cells.

Mistake 2: Mixing Different Battery Types Incorrectly

Mixing lithium and lead acid batteries leads to charging imbalance. Each chemistry requires different charging profiles. As per IEA: Trends in Photovoltaic Applications 2023, battery compatibility also plays an important role in maintaining long-term system performance.

Mistake 3: Using Undersized Wiring or Wrong Connectors

Thin wires restrict current and generate heat. Always select cables sized for the predicted current. Anderson plugs or MC4 connectors generally offer superior contact points compared with generic clamps.

In 2022, an RV rental company in Colorado documented frequent low charge complaints. Inspecting technicians found that customers were often using small, clip-on leads meant for trickle chargers. Swapping those out for thicker MC4 cables made many customer reports of poor performance just about disappear.

How to Maintain Your RV Solar Panel Setup for Long-Term Use

Once connected, a solar system can run for years with simple care. The main problems that may occur are dust, loose connections, and battery aging.

Cleaning and Seasonal Maintenance Tips

Wipe the panel surface when dust or pollen accumulates. Keep cables dry and check connectors every few weeks. During winter storage, disconnect the panel but continue to use the charge controller to maintain the battery at safe levels if sunlight is available.

Checking Battery Health and Improving Lifespan

Watch resting voltage to ensure that the battery stays above recommended levels of discharge. Lithium batteries like shallow cycles. Lead acid batteries like full charges often. A small habit of checking voltage prevents unpleasant surprises during travels.

Final Tips for Safe and Efficient Solar Panel Use

A portable solar panel can keep the RV battery healthy for extended stays, short trips, or remote campsites. With careful wiring, thoughtful placement, and good charging habits, the performance of these units will be steady for several years. If you’re interested in more ways to improve your RV electrical system, you might want to take a look at our mobile power planning guide.

How to Connect a Portable Solar Panel to an RV Battery最先出现在hybrid solar products | HJ-The latest home energy storage equipment。

Can You Connect Solar Panels Directly to a Battery?

info@hj-net.com — Fri, 21 Nov 2025 01:47:58 +0000

Get A Quote Now!

Solar Pure Sine Wave Inverters 4200W

Hybrid Solar Inverter 8000w for Home

HJ-HIO48 Series 3000W-10000W Off Grid Solar Inverter

Off Grid Pure Sine Wave Inverter 3kw 24v 220v

Solar Pump Inverter

Can You Connect Solar Panels Directly to a Battery?

It sounds simple, in theory: just plug the solar panel into the battery and voilà! Let the sun do its thing. But while the thought might be alluring to those who are just starting out with solar experimentation and off-grid setups, reality is much more involved. A solar panel receives its power in a manner that a battery cannot handle safely without the controller regulating the flow. Understanding why is important if you’re going to try building a small DIY system, upgrading your RV setup, or designing a larger solar storage solution.

Most solar energy systems are considered pretty straightforward to use; however, small details, like voltage mismatch or uncontrolled charging, can easily cause damage to the batteries. So, can you connect a solar panel directly to a battery, and what happens if you do?

Let’s walk through what actually happens inside of your system, what’s safe, and what’s the optimal way to set it up.

Why Directly Connecting a Solar Panel to a Battery Is Risky

A solar panel produces variable voltage depending on the sunlight’s strength. On a bright day, a typical 12V panel can easily output 18-22V. A battery, however, has a strict charging voltage range. When voltage is too high, the battery heats up, loses capacity, and ages far faster than normal.

Immediately following any explanation of risks, it is useful to examine one real example. In 2023, an owner of a small cabin in Oregon directly connected a 200W panel to a lead-acid battery in order to “speed up charging.” Over the course of two days, the battery overheated and vented, requiring them to replace it and redesign the entire system. This kind of scenario occurs often because these risks are not intuitively obvious.

In short: a solar panel without control does produce unstable conditions of charging. That’s where a charge controller becomes necessary.

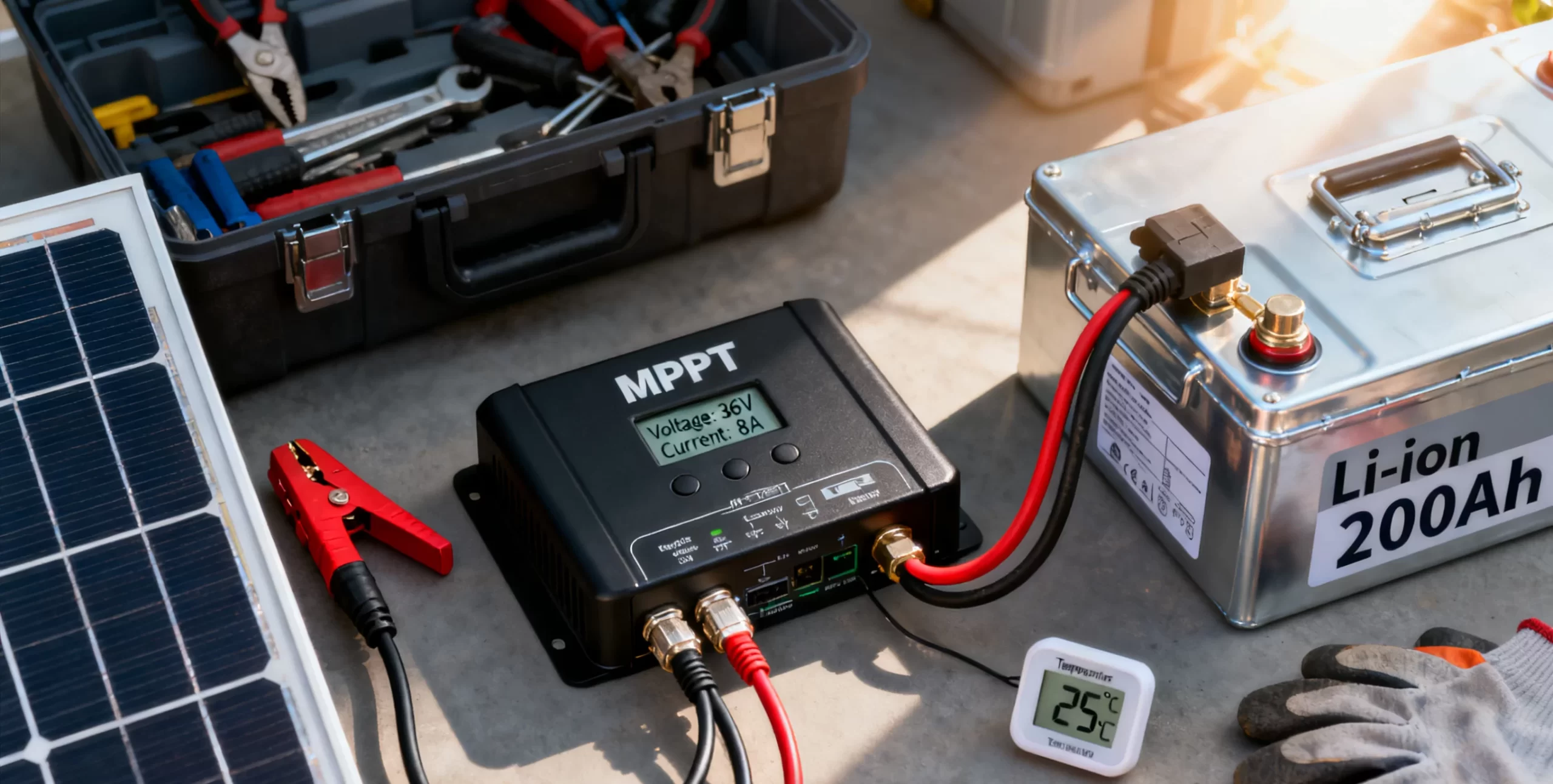

What a Charge Controller Actually Does

A charge controller sits between your solar panel and the battery to manage voltage and current. It prevents overcharging, undercharging, and reverse current during nighttime.

Controllers generally fall into two categories:

PWM (Pulse Width Modulation)– simpler and more cost-effective, often used for small systems.
MPPT (Maximum Power Point Tracking)-more advanced and efficient, particularly for big or high-voltage systems.

According to the National Renewable Energy Laboratory (NREL), MPPT controllers increase overall solar system efficiency by adjusting panel output to its optimal operating point.This method ensures batteries receive stable, safe charging power, even when sunlight fluctuates.

What happens if you connect a solar panel directly to a battery?

Here’s a practical overview:

Overcharging

Without regulation, the battery keeps receiving power even when it’s already full. Lead-acid batteries could leak, swell, or vent. Lithium batteries may enter a protection mode but still be damaged in the long term.

Unstable Voltage Flow

One moment you might have only 8V on a cloudy morning, and ten minutes later 20V under bright sun. Batteries aren’t designed to manage such rapid changes.

More Heat

One of the fastest ways to cause battery lifetimes to shorten is overheating.

Nighttime Reverse Current

Solar panels can drain the battery at sunset if there is no controller to block reverse flow.

Decreased Overall Life Span

Even if the battery doesn’t immediately fail, unregulated charging drastically reduces cycle life.

The only case where direct connection is sort of acceptable is very small trickle charging—say, a 1–5W maintenance panel for keeping a car battery topped up. Even then, many manufacturers recommend a blocking diode or tiny controller.

Suggested Safe Configuration for Solar Panel to Battery Connections

The safest and most efficient setup is:

Solar Panel → Charge Controller → Battery

This configuration ensures:

Stable voltage
Safe current levels
Longer battery life.
Improved overall charging efficiency
Protection against nighttime discharge

Following is a simple comparison table that outlines major differences between a direct connection and a controller-based connection.

Comparison Table: Direct Connection versus Charge Controller Setup

Setup Type	Advantages	Risks	Suitable For
Direct Connection (Panel → Battery)	Simple wiring	Overcharging, overheating, reverse current, reduced battery life	Only small trickle panels (1–5W)
PWM Controller Setup	Affordable, effective for small systems	Less efficient with larger arrays	Small off-grid systems, RVs, lighting
MPPT Controller Setup	Highest efficiency, protects battery, adapts to sunlight changes	Higher price	Larger systems, lithium batteries, variable weather regions

Choosing the Right Components

Solar Panel

Check the voltage rating of a panel. A “12V” panel is never actually 12V; it often outputs 18V+ in real conditions. That’s why regulation is non-negotiable.

Charge Controller

Match the controller’s voltage and current rating to the panel. Example: a 100W panel at 18V needs a controller that handles at least 6A.

Battery Type

Different batteries behave differently:

Lead-acid:very sensitive to overcharging
AGM:more stable but still require controlled charging
LiFePO₄:great protection systems but still require voltage regulation for long-term health

In 2022, a mobile energy startup in Spain deployed a solar storage trailer using LiFePO₄ batteries paired only with MPPT controllers to prevent overheating during summer temperatures. They showed improved performance and a longer lifespan for the batteries compared to earlier lead-acid setups.

Can you ever charge a battery without a controller?

Technically, yes-under strict conditions:

It has to be an extremely low power solar panel, 1–
The battery must be large enough so that it cannot be overcharged easily.
A blocking diode is strongly recommended.

But for anything involving real energy use—solar containers, off-grid cabins, RVs, telecom systems, backup power, or mobile solar solutions—a controller is absolutely necessary.

Even small 20-30W panels can damage a 12V battery if left directly connected for hours under strong sunlight.

Voltage and Current Mismatch in Simple Terms

It may help to think of a solar panel like a faucet and a battery like a water tank. If you open the faucet fully with no control, the tank can overflow. A charge controller is the valve that regulates flow.

Panels produce more “pressure” than the battery needs. If left unregulated, that pressure pushes too much current into the battery, creating heat and stress.

That stress leads to:

Loss of storage capacity
Shortened lifespan
Higher risk of failure

Thus, while connecting directly seems easy, the long-term consequences seldom justify it.

Why Proper Charging Protects Your System Investment

A battery is usually the costliest component of a small solar system. It defeats the purpose of using solar energy to save costs if the battery needs to be replaced too often.

By adding a charge controller:

Your battery lasts longer.
Charging turns out to be more efficient.
Safety improves
You reduce maintenance

It is a small investment with a large impact.

Conclusion: Is It Possible to Directly Connect a Solar Panel to a Battery?

The simple answer is you can, but you shouldn’t—not at least for any system designed to power real devices. A direct connection causes voltage instability, heat buildup, overcharging, and early battery failure.

A charge controller regulates smooth, safe, and efficient charging. Whether you’re powering a small RV setup or designing a solar container system, building it the right way protects your investment and keeps everything working reliably.

If you are interested in how solar charging systems are designed for different applications, feel free to check our photovoltaic panel Solutions.

Can You Connect Solar Panels Directly to a Battery?最先出现在hybrid solar products | HJ-The latest home energy storage equipment。

Top Benefits of Using a Battery Cabinet for Solar Power Storage

info@hj-net.com — Mon, 17 Nov 2025 03:27:55 +0000

Get A Quote Now!

HJ-HIH48 Series 3000-10000W Hybrid Solar Inverter for Home

Hybrid Solar Inverter 3000w for Home

HJ-HIO48 Series 3000W-10000W Off Grid Solar Inverter

Solar Pure Sine Wave Inverter 6000W

Off Grid Pure Sine Wave Inverter 3kw 24v 220v

Top Benefits of Using a Battery Cabinet for Solar Power Storage

When thinking about modern solar power, especially for homes, businesses, and off-grid sites that rely on dependable storage, the battery cabinet has quietly become one of the most important parts. Whether with a rooftop solar array or an outdoor solar kit, placing batteries inside a dedicated cabinet can dramatically improve safety, lifespan, and overall performance.

In the first few paragraphs of this article, we’ll talk about why a battery cabinet including an outdoor battery cabinet or an outdoor weatherproof enclosure cabinet box is something more than a simple metal container. This is about protection systems, efficiency boosters, and more often than not, the deciding factor in whether a solar installation performs well over time.

Why Solar Systems Benefit from Battery Cabinets

A common question people ask is, “Do I really need a battery cabinet if my batteries are of high quality?”

From real-world installations, the answer tends to be yes, especially for environments that are always subjected to heat, dust, or unstable weather.

Batteries are sensitive to temperature swings. According to the U.S. National Renewable Energy Laboratory, higher temperatures quickly accelerate lithium battery aging. This is one reason installers almost always recommend a controlled enclosure.

By placing your storage system in a protective cabinet, you are not only preventing physical damage but also helping the battery maintain stability for long-term performance.

Key Benefits of Using a Battery Cabinet for Solar Storage

Improved Safety

The battery cabinet isolates and protects key components from environmental risk, electrical faults, or accidental contact. This is important because many solar installations are installed outdoors, posing real risks associated with animals, moisture, or unauthorized access.

For instance, a telecommunications site in Queensland, Australia, upgraded to outdoor battery cabinets in 2022 after repeated weather-related failures. This led to greatly increasing uptime and reducing maintenance visits.

Longer Battery Lifespan

In such controlled and stable conditions, batteries tend to last longer. A well-designed cabinet helps in stabilizing temperature, humidity, and airflow-three well-known factors that influence battery health.

An insulated, weatherproof storage cabinet was applied to protect a lithium-ion battery bank during winter in a 2021 municipal microgrid project in Ontario, Canada. This can provide better efficiency of the battery throughout cold months and reduce energy losses due to temperature-induced voltage drops.

Protection against harsh weather

Outdoor battery cabinets and outdoor weatherproof enclosure cabinet boxes protect batteries against rain, UV exposure, dust, and high winds. This is not optional but needed for regions with monsoons, snow, or scorching summer seasons.

Most cabinets also include:

Ventilation or active cooling
Fire-resistant materials
Corrosion-resistant coatings
IP-rated seals for water and dust

Cleaner, Safer Installation Layout

A battery cabinet also enhances general system organization. Instead of having a number of loose components spread out at a site, everything is consolidated, mounted securely, and accessible for maintenance.

This reduces wiring errors, short circuits, and energy losses due to poor cable management.

Comparison Table: Battery Cabinet vs. No Cabinet

Feature / Benefit	With a Battery Cabinet	Without a Battery Cabinet
Weather Protection	Excellent, IP-rated	Poor to moderate
Lifespan Stability	Strong thermal control	Highly affected by climate
Safety	High	Depends on installation
Maintenance	Easier, organized	Harder, scattered
Outdoor	Installation	SuitabilityIdealRisky
Aesthetic Organization	Clean and compact	Messy, exposed

The table below clearly illustrates why battery cabinets have become increasingly standard for a solar storage system, particularly in commercial, telecom, and off-grid projects.

How Battery Cabinets Work in a Solar Setup

A good way to think about a battery cabinet is: it’s the physical “home” of your energy storage system.

Inside the cabinet, you will find:

Lithium or lead-acid battery modules
Circuit breakers and fuses
A battery management system (BMS)
Temperature sensors
Cooling fans or passive airflow systems

These components work together to keep the battery stable and protected. In and of themselves, a cabinet doesn’t store energy; it allows the battery to store energy safely.

What makes an outdoor battery cabinet different?

An outdoor battery cabinet is designed for harsher conditions. While indoor cabinets focus on airflow and organization, outdoor units must handle extreme temperatures, moisture, insects, and even tampering.

Common features include:

Waterproof doors
UV-resistant steel or aluminum
Anti-corrosion powder coating
Locking systems for security
Built-in ventilation or active cooling

An outdoor weatherproof enclosure cabinet box offers protection from all of these while still keeping the footprint small, so it’s perfect for rooftops, telecom towers, or remote energy stations.

Thought-Provoking Question: Can a Battery Cabinet Improve Energy Independence?

Yes-and more often than one may think.

By protecting the battery bank, a cabinet helps to maintain capacity, reduces failures, and supports longer discharge cycles. As a result, users are reliably storing more solar energy, which is critical for off-grid homes, farms, and telecom sites.

If your goal is energy independence, a stable battery system is one of the most important foundations.

When should you consider using a battery cabinet?

You should especially consider one if:

Your solar system is installed outdoors.
You are in a location that experiences extreme weather.
You want longer life-span for expensive batteries
You install solar for telecom, security, or industrial uses.
You like a neat, orderly installation

A simple rule of thumb: the bigger or more remote your solar setup is, the more a battery cabinet matters.

Can a Battery Cabinet Power a Home?

A battery cabinet itself does not power anything; the batteries inside it do.

A cabinet, depending on the system size, can house enough batteries to run an entire home. Many off-grid systems store energy in cabinets that will run from 10-30 kWh, enough to support essential loads for hours or days.

Final Thoughts

A battery cabinet is more than an accessory-it’s a crucial component of making solar storage safer, more durable, and more adaptable to real-world conditions. Be it an outdoor battery cabinet or an outdoor weatherproof enclosure cabinet box, the purpose remains the same: protect your investment and keep your system running smoothly.

If you are working on different ways to optimize your solar storage setup, check out our battery cabinet solutions.

Top Benefits of Using a Battery Cabinet for Solar Power Storage最先出现在hybrid solar products | HJ-The latest home energy storage equipment。

Is the Solar Inverter with Pure Sine Wave Output Worth It?

info@hj-net.com — Fri, 07 Nov 2025 02:56:53 +0000

Get A Quote Now!

Off Grid Pure Sine Wave Inverter 3kw 24v 220v

Hybrid Solar Inverter 10000w for Home

Solar Pure Sine Wave Inverter 6000W

Hybrid Solar Inverter 3000w for Home

Hybrid Solar Inverter 8000w for Home

Is the Solar Inverter with Pure Sine Wave Output Worth It?

When you’re sizing or upgrading your solar setup, one question often comes up: Is investing in a pure sine wave type of solar inverter truly worth the extra cost? Whether you’re looking at a standard grid-tie or a more advanced off-grid solar inverter or hybrid solar inverter system, the choice between pure-sine and another type impacts performance, efficiency, and compatibility.

In this article, I’ll walk through what a solar inverter is, why wave-form quality matters, when pure sine wave makes a real difference, and when it may not; real-world cases; and how to decide smartly for your setup.

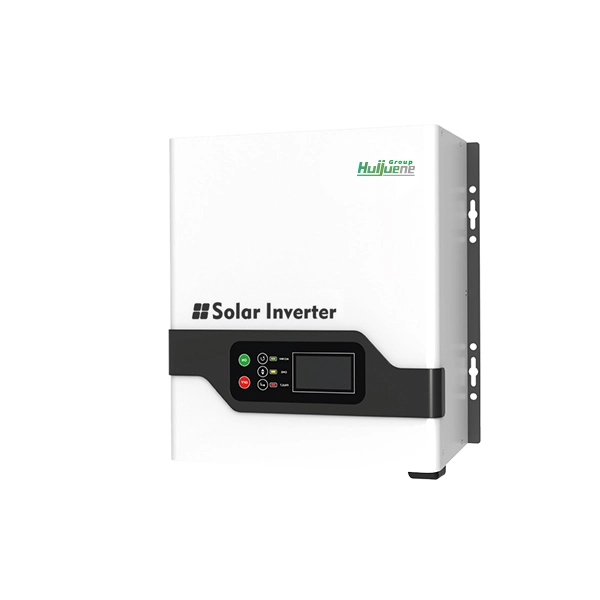

What is a Solar Inverter?

Here’s a definition box and comparison for clarity:

Definition Box / Comparison Table

Term	Meaning
Solar inverter	A device that converts DC power from solar panels and often batteries to an AC power suitable for your loads or grid.
Pure sine wave inverter	A solar inverter whose output AC waveform is near a smooth sinusoidal shape of utility power with very little distortion.
Hybrid solar inverter	A solar inverter designed to work with solar panels, grid, and battery storage; offers flexibility between grid tie, off-grid, or backup modes.
Off-grid Solar Inverter	A solar inverter designed for systems not connected to the grid. These are often used with batteries and solar panels to power a load autonomously.

Why Wave-Form Quality Matters

Your solar inverter may convert DC to AC, but how “clean” that AC is can matter, especially when you connect sensitive electronics, motors, or advanced appliances.

Pure sine wave inverters produce smoother, cleaner output with less harmonic distortion. As one reviewer noted: “A pure sine wave system … is guaranteed to produce a cleaner output for any piece of equipment connected to it.”
By contrast, modified or lower-cost inverters may produce a “stepped” or “square” wave that looks functionally similar but can lead to inefficiencies, device noise, or even damage in certain cases.

When Is a Pure Sine Wave Solar Inverter Worth It?

Here are scenarios where it stands out:

1. Sensitive Electronic Loads

If your system powers laptops, TVs with dimmers, variable-speed motors, medical equipment, or audio gear, a pure sine wave inverter reduces noise, interference, and potential damage. One buyer guide notes, “If the device uses a motor or is delicate, you may need a pure sine wave inverter.”

2. Hybrid & Off-Grid Systems with Battery Integration

When you’re using a hybrid solar inverter or off-grid solar inverter, more often than not, you rely on the inverter for conversion and managing battery discharge. The cleaner waveform aids in the efficiency of batteries, thereby avoiding excess heat in the loads while better managing system stress.

3. Long-Term System Efficiency & Future-Proofing

The upfront cost may be higher, but in general, a pure sine wave inverter will often yield lower losses, better compatibility, and less likelihood of having to upgrade later. If you are planning to expand your system, add more electronic loads, or use batteries, choosing pure sine may save headaches.

When You Might Not Need It

If your loads are simple resistive devices: heaters, basic lights, you might get by with a cheaper inverter and modified sine wave.
If the budget constraint is high and your system is small, you may select a lower cost inverter and then upgrade it later.
But do ask: what if you want to add more complex loads later? That’s where future-proofing matters.

Real-World Cases

Small Off-Grid Cabin, USA, 2023

A homeowner had a 5kW off-grid solar inverter system installed with a mix of basic appliances. First used a standard inverter, and when a fridge started humming and battery bank degradation started progressing faster, they replaced it with a pure sine wave inverter. Result: quieter fridge motor, 12% better usable battery capacity.

Commercial Solar + Battery System, Pakistan, 2024

In Pakistan, a big hybrid solar inverter system serves a small business. They chose a pure sine wave solar inverter to run industrial AC motors and sensitive control equipment. The installer said it has less faults and less downtime than other installs in the neighborhood that are using cheaper units.

Key Factors to Consider (My Analysis)

When considering the purchase of a pure sine wave inverter:

Check your load profile: What appliances? Motors? Variable drives?
Check the inverter specifications: THD, quality of output waveform, and compatibility with batteries.
Check budget vs lifecycle cost: Up-front premium vs. possible savings/longer life
Quality and service check: Especially in areas such as Pakistan, where service access might matter.

Quick FAQ

User-question: Will my laptop charger work on a modified sine wave inverter?

Answer: Probably yes—many rectified loads tolerate it—but it might run a bit less efficient or warmer. You might not need pure sine if you’re okay with that.

User-question: Is the added expense of a pure sine wave solar inverter worth the cost for simple lighting and fans?

Answer: If only basic loads, maybe not. But the cost difference is smaller than it used to be, and the extra insurance for future loads often makes it worth considering.

User-question: Does a pure sine wave inverter improve battery life?

Answer: Indirectly yes—less stress on loads, fewer harmonics, less heat—these factors contribute to better system efficiency and less wear.

My Recommendation

From working on solar systems, my view is this: you can have a simple inverter to begin with and monitor what loads you add later if your system is small, simple and budget-tight. But if you’re planning an off-grid setup, hybrid battery system, or you use motors, sensitive electronics, or future growth is likely-investing in a good pure sine wave solar inverter is a smart move. It gives fewer restrictions, better compatibility, and peace of mind. Leave room in your budget for quality and for expansion in the future. It’s less about “making voltage AC, ” and more about making voltage AC well and reliably.

If you want a detailed buying checklist comparing the top hybrid solar inverter models, specifications for pure sine wave performance, plus region-specific installers-for example, in Pakistan-I can pull one together for you next.

Is the Solar Inverter with Pure Sine Wave Output Worth It?最先出现在hybrid solar products | HJ-The latest home energy storage equipment。

How to Connect a Solar Panel to a Battery: A Step-by-Step Guide

info@hj-net.com — Mon, 03 Nov 2025 01:55:52 +0000

Get A Quote Now!

Industrial pure sine wave inverter 1KW-6KW

HJ-HSH48 Series Inverter Stand With Battery All-In-One System

Hybrid Solar Inverter 3000w for Home

HJ-HIO48 Series 3000W-10000W Off Grid Solar Inverter

Solar Water Pump Inverter

How to Connect a Solar Panel to a Battery: A Step-by-Step Guide

If you’re exploring how to connect a solar panel to a battery, you’re stepping into one of the most empowering parts of clean energy—turning sunlight into stored electricity. Whether you plan to power a shed, RV, off-grid cabin, or home backup system, wiring a solar panel to battery storage isn’t hard, but it does require the right steps and safety gear.

Many people ask:Can I connect a solar panel to a battery directly?

No. You should never wire a solar panel directly to a battery.

You will need a charge controller and proper energy storage accessories for protection of your system and efficient charging.

Within the next few minutes, you are going to know the practical, real-world way of connecting a solar panel, battery, and controller without getting drowned by technical terminologies.

What does “solar panel to battery” really mean?

Solar panel to battery connection means assembling such a system that:

Captures the light from the sun (solar panel)
Converts and regulates power (charge controller)
Stores electricity -battery
Shares power to devices/inverter – (optional but common)

It’s essentially sunlight → storage → usable power.

Why You Can’t Connect a Solar Panel to Battery Directly

Solar panels output fluctuating voltage; batteries require stable charging.

Without protections, direct wiring can lead to:

Overheating of batteries
Shortened battery life
Fire risk
Panel damage

A charge controller sits between the solar panel and battery to regulate voltage and current.

What You Need (Checklist)

Component	What It Does	Notes
Solar panel	tproduces electricity	Match panel watts to battery size
Charge controller (PWM or MPPT)	protects the battery, and optimizes power flow	MPPT = higher efficiency
Battery	Stores energy	LiFePO₄ or AGM preferred
Cables	Power transmission	Match gauge to system amps
Fuse/Breaker	Safety cutoff	Always add between battery + controller
Optional inverter	DC to AC conversion	Necessary for appliances

Tip: Solar panel to battery wiring has to be thought of like plumbing-too much pressure without a valve causes damage. Here, voltage = pressure.

Step-by-Step: How to Connect Solar Panel to Battery

The charge controller must first be connected to the battery.

Red to battery +
Black to battery −

Most controllers only wake up if battery power is present.

Connect the solar panel wires to the controller

Red to panel + input
Black to panel − input

3.Add a fuse on the battery positive line

Size: ~1.25× max current
Distance: within 6–8 inches of battery terminal

Connect inverter to the battery if AC load is applied
5.Verify settings

Battery type: LiFePO₄, AGM, Gel
Voltage (12V/24V/48V)
Maximum charge current

Choosing the Right Battery for Solar

Battery Type	Good For	Notes
LiFePO₄	Home storage, RVs, cabins	Long life, safe, fast charging
AGM	Backup power, small systems	Cheaper but shorter lifespan
Gel	Low-power outdoors	Slow charging
Flooded Lead-acid	Budget off-grid	High maintenance

If you’re using high-power appliances, LiFePO₄ pairs best with solar panel to battery systems.

Real-World Case Examples

Case 1: Off-Grid Cabin in Colorado, 2024

A cabin owner installed:

800W solar panel array
24V 200Ah LiFePO₄ battery
MPPT controller

Result: Runtime increased from 8 hours to 22 hours per charge thanks to MPPT efficiency and correct panel-to-battery pairing.

Case 2: Australia RV Traveler, 2023

A traveler connected a solar panel to battery setup with:

400W flexible panels
12V LiFePO₄ battery
DC fuses + MPPT controller

Reported 35% longer battery life and no overheating issues after switching from PWM.

Common Mistakes When Connecting Solar Panel to Battery

Connecting panel directly to battery
Mismatched Voltages (12V panel to 48V battery without MPPT)
No fuse protection
Undersized wiring causing heat
putting the battery in an unventilated area-for lead-acid types

The National Renewable Energy Laboratory identifies overheating as one of the highest risks in unmanaged systems.

FAQ-Style Questions You Probably Have

Q: How do I size a solar panel to battery system?

Use the following shortcut:

For 12V 100Ah LiFePO₄ battery → ~200W–300W solar
For 24V 200Ah battery → ~800W solar

Q: Can I hook multiple solar panels to one battery?

Yes — wire panels in series or parallel and feed through one controller, sized correctly.

MPPT is highly recommended if the panels differ in wattage or voltage.

Q: What size of wire should I use?

Rule of thumb: Lower voltage = thicker wire

Many 12V systems commonly use 8AWG or 10AWG for short runs.

Bonus: What About Outdoor Energy Storage Cabinets?

If your batteries are outdoors, consider:

Weather-sealed battery cabinets
Ventilation (for lead-acid)
Safety locking system
Cable entry ports

Outdoor battery cabinets protect wiring and solar panel to battery terminals from:

Rain
UV exposure
Rodents
Vandalism

This setup is used by many off-grid homes and telecom stations.

Using the right steps and accessories for energy storage turns a simple project into a reliable power system. Wiring a solar panel to a battery setup isn’t about being perfect in technology; it’s all about following smart safety practices and understanding components that enable the system to work for you, whether for your shed, RV, cabin, or even a whole home.

How to Connect a Solar Panel to a Battery: A Step-by-Step Guide最先出现在hybrid solar products | HJ-The latest home energy storage equipment。

How to Connect Solar Panel to Battery Without Charge Controller

info@hj-net.com — Mon, 27 Oct 2025 02:35:28 +0000

Get A Quote Now!

Hybrid Solar Inverter 3000w for Home

Pure Sine Wave Inverters 2000w

HJ-HSH48 Series Inverter Stand With Battery All-In-One System

Off Grid Pure Sine Wave Inverter 3kw 24v 220v

Industrial pure sine wave inverter 1KW-6KW

How to Connect Solar Panel to Battery Without Charge Controller

In case you are contemplating connecting solar panel to battery without charge controller, you might be asking yourself: “Is it safe even?” or “What if I do without the controller?

“In reality, it can be done in very exceptional situations to connect a solar panel to a battery without the use of a charge controller, but it is very dangerous.

This lesson will guide you through when it is safe, how to do it (if you choose to), and what you absolutely must pay attention to.

What Does a Charge Controller Do?

Before we dive into the “no-controller” setup, let’s describe the purpose of a solar charge controller. A charge controller is a device inserted between the solar panel array and the battery bank to regulate voltage and current, to prevent overcharge of the battery, and to prevent reverse current flowing back.

In other words:

It prevents the battery from being overcharged and destroyed.
It prevents the battery from being drained back into the solar panel at night.
It maximizes panel output to battery voltage efficiently.

Skipping this step means taking risk of battery harm or shortened life.

Is It Ever Safe to Directly Connect a Solar Panel to a Battery?

Yes — in a very exceptional circumstance

A direct connection can be safely reasonable if all the following apply:

Solar panel output is extremely small compared to the battery capacity.
The system is really trickle-charging, not bearing heavy loads.
You use a blocking diode or equivalent to prevent reverse current.

Some DIYers have the notion: “I’ll just connect the solar panel to the battery — how bad could it be?” The truth is the danger is there: panels output variable voltage, batteries need steady charging, and without regulation you invite the risk of overcharging, heat generation, or reduced battery life.

How to Connect Solar Panel to Battery Without a Charge Controller

If you still wish to proceed with the direct linkup (in secure, restricted conditions), here is a step-by-step process and what needs to be done.

Step-by-Step Guide

1.Select the correct solar panel and battery size

Select a panel whose voltage is close to the battery nominal voltage (for example, a ~12V battery with panel rated around 17V-18V).

Ensure the current through the panel is low enough not to cause over-charging (e.g., <1/100th the battery amp-hour rating).

2.Utilize blocking diode or built-in diode feature

Prevent battery discharge back into the panel at night or low light.

3.Connect panel to the battery with correct gauge wires and fuses

Install a fuse in series between panel and battery to avoid short circuits.

Reduce wiring to reduce voltage drop.

4.Watch out for battery voltage and temperature

Employ a voltmeter or battery monitor to prevent the battery from being over safe charging voltage.

In hot climates watch temperature — excessive heat will shorten battery life.

5.Restrict use to low-power devices or trickle charging

This setup is most appropriate for battery charge maintenance and not complete off-grid systems with loads.

Quick Reference Table

Parameter	Minimum Safe Value (no controller)
Panel power to battery capacity ratio	< ~0.01 (i.e., <1% of amp-hour rating)
Blocking diode installed	Yes
Fuse panel to battery	Yes
Voltage matching (panel to battery)	Panel Vmp < ~1.2 × Battery nominal
Monitoring installed	Yes (voltage & temp)

Risks and Considerations

Overcharging:The higher voltage than the battery can be supplied by the panel without regulation, leading to gassing, thermal stress or damage.
Reverse current flow:Current at night would circulate back from battery to panel and deplete the battery.”.
Reduced panel efficiency:The panel will operate at battery voltage, quite possibly much lower than its optimum point, reducing output by 20-30%.
Battery life:Excessive overcharging, heat, or wrong voltage reduce battery life — especially for lithium-based systems.
Li-ion systems warning:While lead-acid can survive trickle charge in rare conditions, lithium batteries need precise charging curves and generally flat-out need a good charge controller.

When You Absolutely Should Use a Charge Controller

If your solar panel array power is medium to large (e.g., >100W for 12V battery).
If you’re adding battery storage for full off-grid use or load support.
If you’re dealing with lithium-ion or LiFePO₄ batteries (which have tight charging requirements).

Real-World Case Study: Remote Cabin in British Columbia

On a Whistler cabin installation, Canada, a 200 W solar panel was initially connected directly to a 12V 150Ah battery with no charge controller. Voltage was watched, a blocking diode was employed, and only tiny LED loads were illuminated.

After 18 months the system worked—but with reduced battery capacity and output from the panel had dropped ~15 %.

The installer had this to say: “This only succeeded because the solar current was very low in relation to battery size and loads were minimal.”

This shows that while operational in particular low-demand scenarios, this setup is not scalable and not suited for reliability.

Final Thoughts

Deciding whether to connect solar panel to battery without a charge controller depends heavily on your system size, battery type, and risk tolerance. If it’s an ultra-low-power setup solely for trickle charging, it can be done with caution and proper protection. But for any serious or critical application—especially off-grid, multiple panels, or lithium batteries—the safest and smartest move is to use a proper charge controller. If you’re planning a full solar+storage system and want a robust solution, you’ll likely skip the “no controller” path and opt for a regulated, safely-designed setup with monitoring, protection, and long-term reliability.

How to Connect Solar Panel to Battery Without Charge Controller最先出现在hybrid solar products | HJ-The latest home energy storage equipment。

How Do Solar Panels Charge a Battery Efficiently?

info@hj-net.com — Tue, 21 Oct 2025 03:17:25 +0000

Get A Quote Now!

Solar Pure Sine Wave Inverter 6000W

Pure Sine Wave Inverters 2000w

HJ-HIO48 Series 3000W-10000W Off Grid Solar Inverter

Pure Sine Wave Inverters 300w

Solar Pump Inverter

How Do Solar Panels Charge a Battery Efficiently?

When you first look at a solar installation, it’s easy to see panels soaking up sunlight and wonder: how do solar panels charge a battery efficiently? Whether for roof-top systems, remote cabin, or off-grid container, understanding the path from sunshine → PV module → battery storage helps you get more out of your investment. In this guide we’ll walk through how solar charging works, what factors boost or kill efficiency, and real-world tips to make your setup run smoothly.

What Exactly Happens When Solar Panels Charge a Battery?

Definition: A solar panel converts sunlight into DC electricity, which then flows through a charge controller or inverter/charger into a battery bank where it is stored as chemical energy.

Key components and flow:

Solar PV module → produces DC current/voltage
Charge controller or MPPT unit → maximizes voltage/current to the battery
Battery bank → stores the energy
Inverter (if AC loads exist) → when needed, converts it back to AC

One of the most frequently asked questions: “Do I simply plug the solar panel into the battery and I’m set?” — Short answer: Not exactly, since without proper matching and protection you waste a great deal of potential efficiency and possibly damage your system.

Why Efficiency Is Important & What Average Efficiency Is

Your system is as good as how little waste it generates along the way: from panel → battery → load. As cited by the National Renewable Energy Laboratory (NREL), if well-designed PV-plus-battery system is used, charging from the matched PV module (and not from multiple AC/DC conversions) is stated to have a round-trip efficiency of about 87%.

So if you ask yourself: “Why isn’t every system getting 100%?”, the answer is losses from wiring, conversion, heat, and mismatching.

Here’s a brief table of rough losses:

Stage	Typical Losses	Impact on Efficiency
PV conversion & mismatch	5–10%	Panels underperform if mismatched
MPPT / charge controller	2–5%	Sub-optimal if low cost or poorly adjusted
Wire/inverter losses	3–7%	Increased runs, higher current increase loss
Temperature & aging	Variable	Hot climates or old batteries age faster

Step-by-Step: How Efficiently to Set Up Solar Panel → Battery Charging

Migrate panel and battery voltages

Using an MPPT charge controller ensures that the solar module will run at its best voltage no matter what battery voltage is. For example, for a 24 V battery bank use, modules can be 36 V-or-higher nominal in order to have MPPT headroom.

Reduce conversion steps

Every conversion—such as DC to AC and then DC again—incurs losses. The less conversion, the better. NREL states that an all-direct DC-coupled PV+battery design is more efficient by a few points than AC-coupled.

Use good charge controller / battery management system (BMS)

A good MPPT controller will keep the panel output at its sweet spot irrespective of variations in sunlight and temperature.

Reduce wiring, temperature & load mismatching

Reduce wire runs and proper gauge to reduce resistive losses
Maintain battery bank in optimal temperature (20-30°C) to achieve longest life and efficiency
Design battery capacity based on expected solar generation and load profile

Monitor and maintain

Use monitoring equipment to track how much energy the panels generate, how much battery saves, and how much gets wasted. This can warn of mismatches or inefficiencies before they become major problems.

Real-World Example: Remote Field Lab in Arizona

One of the remote field research stations in Arizona combined solar panels with a 48 V battery bank and MPPT controller. Given the high sunlight hours on-site, they sized their battery to equal about one full day of solar. The MPPT optimized for variable sun (clouds, dust), and the system had a measured round-trip efficiency of 83%—near optimal for actual conditions.

One of the site manager’s queries: “Can clouds kill all the efficiency?” — no, but routine shading or dusting heavily boost losses because the MPPT is constantly battling to find a steady maximum power point.

Why some systems still underperform

Running a PWM charge controller instead of MPPT will definitely cause losses much larger, especially in fluctuating light

Oversized or undersized battery in comparison to panel size causes either wasted generation or battery strain

Heat and poor ventilation decrease battery life and performance

Bypassing monitoring allows you to miss problems like dirty modules or loose connections early

Key Terms You Should Know

MPPT (Maximum Power Point Tracking):A technology in charge controllers to maximize the power out from solar modules.
Depth of Discharge (DoD):The percentage of the capacity that is being consumed. Higher DoD without management can shorten lifespan.
Round-Trip Efficiency:How much energy you get out of the battery compared to how much you put in.
DC-Coupled vs AC-Coupled:DC-coupled configurations have less conversion (more efficient) while AC-coupled might be simpler but not quite as efficient.

Thoughts Depending on Your Configuration

For a home roof:Less wire, smaller panel size, and solid MPPT will typically do the job
For off-grid cabins: Battery sizing is crucial—if the panel array is too large but battery is under-sized, a lot of energy is wasted
For research or industrial applications:Monitoring and ambient temperature become critical. Temperature changes or dust can derate efficiency quickly

When you are asking yourself “Why is my battery charging slower than expected?”, most times the cause is one of the above. By verification of panel orientation, controller efficiency, battery condition and wiring, most issues can be resolved.

FAQs Built In Naturally

If my panels are shaded some of the day, can I charge the battery effectively?

Yes, but the MPPT will do more work and may not be at the optimal point; shade = lower rest-of-day generation.

Can I just use any solar panel with any battery and seek high efficiency?

Not really—voltages need to be compatible, a correct controller has to be used, and the battery has to be sized properly to maximize benefit.

Does the battery type affect charging efficiency?

Yes. New lithium-ion batteries charge more quickly and possess less internal resistance than older lead-acid banks, making the process more efficient overall.

And even with all of this information, your unique site conditions (lighting, wire length, battery temperature) will always play a large role in determining how efficient the process really is.

How Do Solar Panels Charge a Battery Efficiently?最先出现在hybrid solar products | HJ-The latest home energy storage equipment。

100Ah Inverter Battery Price

info@hj-net.com — Fri, 17 Oct 2025 02:49:05 +0000

Get A Quote Now!

HJ-HIO48 Series 3000W-10000W Off Grid Solar Inverter

Solar Pump Inverter

Solar Pure Sine Wave Inverter 6000W

Hybrid Solar Inverter 10000w for Home

Off Grid Pure Sine Wave Inverter 3kw 24v 220v

100Ah Inverter Battery Price

When someone asks, “How much does a 100Ah inverter battery cost?” what they really mean is: how much you’ll pay for reliable backup power, for solar setups, or home systems. In many markets, a decent 100Ah inverter battery can run anywhere from USD 120 to USD 400+, depending on chemistry, brand, and features.

A 100Ah inverter battery is commonly used for home backup, solar usage, and small off-grid systems. Price depends heavily on lead-acid, AGM, or lithium (LiFePO₄), brand, guarantee, and after-purchase support. Below, in further detail, we will analyze found prices, show using actual items, compare, and help you pick the right one.

What Affects the 100Ah Inverter Battery Price?

Several key factors influence how much you’ll pay:

Factor	Influence on Price	Notes
Battery Chemistry	Lithium (LiFePO₄) costs far more than lead-acid or AGM due to materials, life cycles, safety features	Lithium’s longer life and lighter weight often justify premium
Cycle Life / Warranty	Higher cycles and longer warranty increase cost	E.g. 3,000–5,000 cycles is typical for quality LiFePO₄
Brand & Supply Chain	Established brands charge more; local manufacture or imports affect pricing
Electronics & BMS	Safety and cost offered by Smart Battery Management System	Compared to the protection required for lithium batteries, as needed
Physical design & casing	Ruggedness, terminals, quality of enclosure add cost
Shipping, import duty & local taxes	In most locations, landed cost adds 20–40% to base cost

So, when you are quoted by a local trader for a “100Ah inverter battery” for let’s say USD 120, it is likely lead-acid, minimal warranty, or without sophisticated BMS.

Lead-Acid vs Lithium: Price vs Performance

One of the most common questions is: “Is the extra cost for lithium worthwhile compared to lead-acid?”

Here’s the comparison on both sides:

Measurement	Lead-Acid / AGM	Lithium (LiFePO₄)
Cycle Life	~500–1,000 cycles	2,000–5,000+ cycles
Depth of Discharge	50% safe limit	Up to 80–100% usable in most designs
Weight & Size	Heavier, bulkier	Lighter, more compact for similar capacity
Performance in Heat / Cold	More sensitive	Improved stability over temperature
Price per Ah	Lower initial	Highest initial but usually lower life cost

In the majority of solar or inverter setups, lithium’s improved performance is worth spending perhaps 2–3× more upfront — especially where longevity, less maintenance, and restricted space are key.

Typical Price Ranges per Market Segment

Below is a rough classification of what you can expect in each tier for a 100Ah inverter battery:

Basic lead-acid / AGM: USD 100–180
Mid-range AGM or gel with better warranty: USD 180–250
Minimal LiFePO₄ / lithium battery: USD 300–450
Premium / high cycle / branded lithium: USD 400–600+

Where you are at is based on local cost + transport and import duty.

Buying Tips 100Ah Inverter Battery

Ask for warranty details (years and cycle warranty).
Verify if the BMS is integrated and inverter load capable.
Verify cell balancing, overcharge/overdischarge protection included.
If local sellers quote “sale” prices that are too low, ask about battery source and quality.
Consider cost of living for 5–10 years, not the price.

100Ah inverter battery price is quite fluctuating, but having knowledge of chemistry, warranty, and quality factors will guide you to make a good decision rather than going by the lowest number.

100Ah Inverter Battery Price最先出现在hybrid solar products | HJ-The latest home energy storage equipment。
