How to Connect a Solar Panel to a Battery: A Step-by-Step Guide
If you’re exploring how to connect a solar panel to a battery, you’re stepping into one of the most empowering parts of clean energy—turning sunlight into stored electricity. Whether you plan to power a shed, RV, off-grid cabin, or home backup system, wiring a solar panel to battery storage isn’t hard, but it does require the right steps and safety gear.
Many people ask:Can I connect a solar panel to a battery directly?
No. You should never wire a solar panel directly to a battery.
You will need a charge controller and proper energy storage accessories for protection of your system and efficient charging.
Within the next few minutes, you are going to know the practical, real-world way of connecting a solar panel, battery, and controller without getting drowned by technical terminologies.
What does “solar panel to battery” really mean?
Solar panel to battery connection means assembling such a system that:
- Captures the light from the sun (solar panel)
- Converts and regulates power (charge controller)
- Stores electricity -battery
- Shares power to devices/inverter – (optional but common)
It’s essentially sunlight → storage → usable power.
Why You Can’t Connect a Solar Panel to Battery Directly
Solar panels output fluctuating voltage; batteries require stable charging.
Without protections, direct wiring can lead to:
- Overheating of batteries
- Shortened battery life
- Fire risk
- Panel damage
A charge controller sits between the solar panel and battery to regulate voltage and current.
What You Need (Checklist)
Component | What It Does | Notes |
Solar panel | tproduces electricity | Match panel watts to battery size |
Charge controller (PWM or MPPT) | protects the battery, and optimizes power flow | MPPT = higher efficiency |
Battery | Stores energy | LiFePO₄ or AGM preferred |
Cables | Power transmission | Match gauge to system amps |
Fuse/Breaker | Safety cutoff | Always add between battery + controller |
Optional inverter | DC to AC conversion | Necessary for appliances |
Tip: Solar panel to battery wiring has to be thought of like plumbing-too much pressure without a valve causes damage. Here, voltage = pressure.

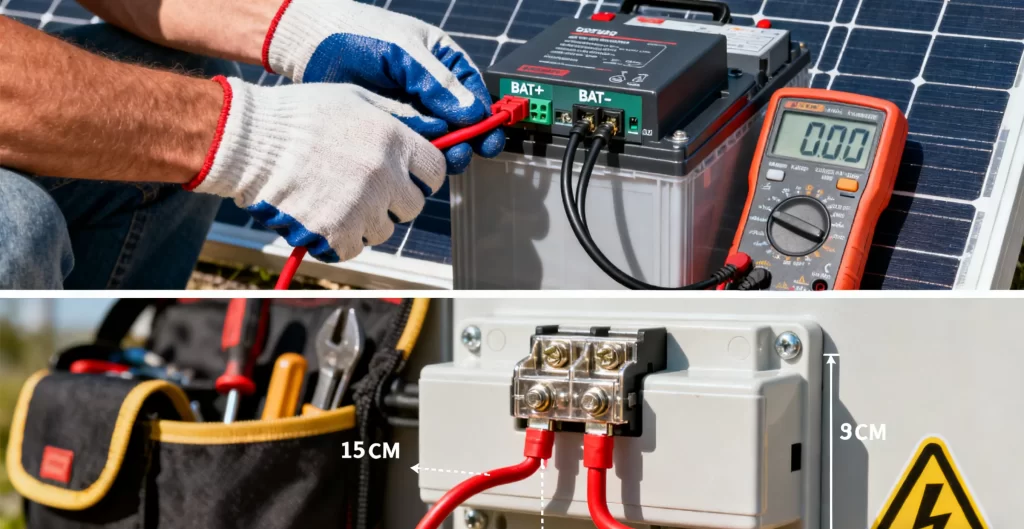

Step-by-Step: How to Connect Solar Panel to Battery
- The charge controller must first be connected to the battery.
- Red to battery +
- Black to battery −
Most controllers only wake up if battery power is present.
- Connect the solar panel wires to the controller
- Red to panel + input
- Black to panel − input
- 3.Add a fuse on the battery positive line
- Size: ~1.25× max current
- Distance: within 6–8 inches of battery terminal
- Connect inverter to the battery if AC load is applied
- 5.Verify settings
- Battery type: LiFePO₄, AGM, Gel
- Voltage (12V/24V/48V)
- Maximum charge current
Choosing the Right Battery for Solar
Battery Type | Good For | Notes |
LiFePO₄ | Home storage, RVs, cabins | Long life, safe, fast charging |
AGM | Backup power, small systems | Cheaper but shorter lifespan |
Gel | Low-power outdoors | Slow charging |
Flooded Lead-acid | Budget off-grid | High maintenance |
If you’re using high-power appliances, LiFePO₄ pairs best with solar panel to battery systems.
Real-World Case Examples
Case 1: Off-Grid Cabin in Colorado, 2024
A cabin owner installed:
- 800W solar panel array
- 24V 200Ah LiFePO₄ battery
- MPPT controller
Result: Runtime increased from 8 hours to 22 hours per charge thanks to MPPT efficiency and correct panel-to-battery pairing.
Case 2: Australia RV Traveler, 2023
A traveler connected a solar panel to battery setup with:
- 400W flexible panels
- 12V LiFePO₄ battery
- DC fuses + MPPT controller
Reported 35% longer battery life and no overheating issues after switching from PWM.
Common Mistakes When Connecting Solar Panel to Battery
- Connecting panel directly to battery
- Mismatched Voltages (12V panel to 48V battery without MPPT)
- No fuse protection
- Undersized wiring causing heat
- putting the battery in an unventilated area-for lead-acid types
The National Renewable Energy Laboratory identifies overheating as one of the highest risks in unmanaged systems.
FAQ-Style Questions You Probably Have
Q: How do I size a solar panel to battery system?
Use the following shortcut:
- For 12V 100Ah LiFePO₄ battery → ~200W–300W solar
- For 24V 200Ah battery → ~800W solar
Q: Can I hook multiple solar panels to one battery?
Yes — wire panels in series or parallel and feed through one controller, sized correctly.
MPPT is highly recommended if the panels differ in wattage or voltage.
Q: What size of wire should I use?
Rule of thumb: Lower voltage = thicker wire
Many 12V systems commonly use 8AWG or 10AWG for short runs.
Bonus: What About Outdoor Energy Storage Cabinets?
If your batteries are outdoors, consider:
- Weather-sealed battery cabinets
- Ventilation (for lead-acid)
- Safety locking system
- Cable entry ports
Outdoor battery cabinets protect wiring and solar panel to battery terminals from:
- Rain
- UV exposure
- Rodents
- Vandalism
This setup is used by many off-grid homes and telecom stations.
Using the right steps and accessories for energy storage turns a simple project into a reliable power system. Wiring a solar panel to a battery setup isn’t about being perfect in technology; it’s all about following smart safety practices and understanding components that enable the system to work for you, whether for your shed, RV, cabin, or even a whole home.
